FAQ

Rain Gun

(1) Which pump is ok for the rain gun PY40?

A: Gasoline pump, diesel pump, submersible pump, centrifugal pump all ok.

HP: 7.5HP to 15HP

Pump data: lift 40m, flow rate 20m³/h, power 4kw.

(2) Which type of hose for the rain gun?

A: PVC lay flat hose or PVC Fire hose

(3) Which size of hose for the rain gun?

A: 2 inch or 2.5 inch PVC lay flat hose or PVC Fire hose

Note:

2 inch PVC hose for 1.5 inch PY30 rain gun

2.5 inch PVC hose for 2.5 inch PY50 rain gun

(4) Rain gun do not rotate, how to adjust the rain gun?

A: Mainly four reasons below

Pressure is low: change pump (lift 40m, flow rate 20m³/h, power 4kw).

Spring is tight:

Angle is small:

Water is dirty: choose another water source and use disc filter.

(5) Pressure of the rain gun PY40?

A: Suggested pressure is 3 bar to 5 bar.

8 bar or higher pressure is ok, and the radius is longer, only if the irrigation pipe can withstand the pressure.

(6) Application of the rain gun?

Cucumber, Lettuce, Cabbage, Green pepper,Yellow Pepper, Carrot, Golden melon, Water melon, Plantain, Banana, Coffee, Maize, Corn, Wheat, etc.

(7) What's the HS code of metal rain gun?

A: 8424899990

Sprinkler

(1) What’s the main material of metal impact sprinkler AY-5300?

A: Aluminum body + Brass core

(2) What’s the spring material of metal impact sprinkler AY-5300?

A: Stainless steel ( SS )

(3) Metal impact sprinkler AY-5300, part circle ( angle adjustable) or full circle?

A: 360 degree full circle

(4) Is the metal impact sprinkler resistant to chemicals?

A: Yes. Aluminum body withstands chemicals and accidental impact

(5) What’s the main material of plastic impact sprinkler?

A: POM

(6) What’s the spring material of plastic impact sprinkler?

A: Stainless steel ( SS )

(7) Plastic impact sprinkler AY-5035D, part circle ( angle adjustable) or full circle?

A: 360 degree full circle

(8) What’s the main material of 1 inch plastic impact sprinkler?

A: Engineering plastic ABS+POM

(9) Plastic impact sprinkler AY-5101, part circle ( angle adjustable) or full circle?

A: Part circle

(10) Plastic impact sprinkler AY-5104, part circle ( angle adjustable) or full circle?

A: 360 degree full circle

(11) How to adjust the part circle plastic impact sprinkler?

A: The simplest solution is to control the flow of water at its source. You can also adjust the different parts of the head, like the diffuser pin, movement collars, and deflector shield, to get the right strength and trajectory.

Note: Details information, please refer to the article <How to Adjust an Impact Sprinkler>

(12) What’s the function of anti-drip device?

A: After closing, prevent the sprinkler from losing water.

(13) What's the HS code of plastic sprinkler and connectors?

A: 8424909000,  8424820000 or 3926909090

Drip

(1) What’s the main material of drip tape with flat emitter?

A: PE

(2) Is drip tape original ( new )material ?

A: Original ( new) Material

(3) Is the drip tape with flat emitter resistant to UV radiation?

A: Yes. High quality plastic body withstands UV radiation

(4) Is drip tape ok for subsurface irrigation?

A: Ok,  5 cm underground

(5) What is the length of drip tape required for one acre?

A: 4000 meters/acre. More fittings, quantity and details, please checkWhat drip irrigation kit do you need for 1 acre farm

(6) What’s the main material of adjustable dripper 0-70 L/H?

A: PP

(7) Which pipe for the adjustable dripper 0-70 L/H?

A: Can be placed directly onto PE pipe 16-32mm or at the end of 4/7 PVC soft hose 6mm.

(8) Which punch for the adjustable dripper 0-70 L/H?

A: For installation use punch 3mm.

(9) Is the adjustable dripper 0-70 L/H resistant to UV radiation?

A: Yes. High quality plastic body withstands UV radiation and chemicals.

(10) How to adjust the adjustable dripper 0-70 L/H?

A: Signs (+) and (-) for discharge regulating.

(11) What’s the main material of PC dripper?

A: PP

(12) Which pipe for the PC dripper?

A: Can be placed directly onto PE pipe 12-32mm or at the end of 4/7 PVC soft hose 6mm. The outlet of PC dripper can be connected with drip arrow by connector and 3/5 PVC soft hose, in order to guide the droplet to the required position.

(13) What’s the main material of micro spray tube?

A: PE

(14) Is the micro spray tube resistant to UV radiation?

A: Yes. High quality plastic body withstands UV radiation

(15) Maximum spray tube laying length for the farm?

A: Spray tube can be laid up to 70 meters (according to different size). Pressure must be ensured to be 0.8-1.5 kg / cm².

(16) How many spray tube meters for 1 acre farm?

A: 800-1000m

(17) What’s the main material of PE lay flat hose?

A: PE

(18) Is the PE lay flat hose resistant to UV radiation?

A: Yes. High quality plastic body withstands UV radiation

(19) Can PE lay flat hose be used for spray tube or drip irrigation?

A: Yes. It is ideal main hose for spray tube irrigation and drip irrigation at low pressure connected with drip tapes, irrigation pipes.

(20) What’s the main material of mini valve?

A: POM

(21) Application of the drip tape with flat emitter?

A: Irrigation for orchards, vineyards, fruit, vegetables, field crops and green house. For grape, strawberry, melon, corn, coffee, tea, tomato, cucumber, carrot, potato, onion, etc.

(22) Application of the adjustable dripper 0-70 L/H

A: Ideal drip irrigation for trees, potted plants and flowers. For Plantain, Pineaple, Cocoa , Castor, etc.

(23) Application of the micro spray tube?

A: For closely spaced crops, onion, vegetable crops, groundnut, leafy vegetables, cabbage, plantain, cocoa, dragon fruit, tomato, lawn, etc.

(24) What's the HS code of drip tape?

A: Drip tape HS code: 3917320000, 3926909090,  3917310000 or  3917330000

(25) What's the HS code of drip tape connectors?

A: 3926909090 or 3917400000

(26) What's the working pressure of drip tape?

A: Suggest working pressure 1 bar, no more than 1.5 bar

(27) What's the BP burst pressure of drip tape?

A: Different thickness, different BP

0.15mm @2bar

0.16mm @2bar

0.18mm @2.5 bar

0.20mm @2.8 bar

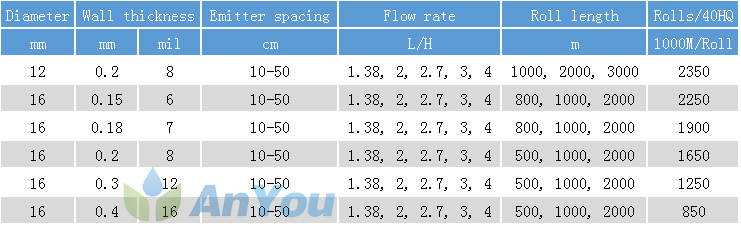

(28) How many meters of drip tape can be loaded in one container?

A:

How many meters of drip tape in one container anyou

0.15,0.16mm:  2200.000-2300.000 for 40 HQ;

0.2mm: 650.000m for 20GP

0.2mm: 1650.000 to 1800.000m for 40HQ

20 GP container: 33.2 m³,30.48 t;

40 HQ container: 76.3 m³,32.5 t;

(29) What's the working pressure of PVC Fire hose?

A:

Working Pressure:8-10 bar

BP Pressure:24-30 bar

(30) How many adjustable dripper and connectors for 1 hecter land?

A:  Crop作物:Plantain 芭蕉, pineapple菠萝, Cocoa可可, Castor蓖麻 etc

种植面积:1Hecter (3m x 3m planting)

Drip kits:

PE Layflat Main/Submain hose - 400m

PE pipe 16mm(20mm)- 3500m

Screen filter - 1pcs

Hold down support - 1000pcs

Layflat Equal Valve - 8pcs

LayFlat Quick Coupling - 8pcs

Offtake Connectors for Layflat - 200pcs

PE pipe End Cap -200pcs

Punch for Layflat hose - 2pcs

Layflat Hose End Cap - 4pcs

PE- Straight connector- 100pcs

Handle Punch for PE pipe - 2pcs

Adjustable Drippers 0-100L/h - 1200pcs



Crop作物: Cashew腰果,Palm fruit棕榈果, Coconut trees椰子树

种植面积:1Hecter (9m x 9m planting)

Drip kits:

PE Layflat Main/Submain hose - 200m

PE pipe 16mm(20mm)- 1200m

Screen filter - 1pcs

Hold down support - 600

Layflat Equal Valve - 4pcs

LayFlat Quick Coupling - 4pcs

Offtake Connectors for Layflat - 100pcs

PE pipe End Cap -100pcs

Punch for Layflat hose - 2pcs

Layflat Hose End Cap - 2pcs

PE- Straight connector- 100pcs

Handle Punch for PE pipe - 2pcs

Adjustable Drippers 0-100L/h - 125pcs

(31) How many years can the LDPE pipe be used?

A: For LDPE pipe 16mm, 20mm, 25mm, different thickness different lifetime.

For 0.15mm thickness, Lifetime is 3 years

(32) LDPE pipe: Weight and package of LDPE pipe 16mm, 20mm, 25mm

A: LDPE pipe 200m/roll
Package:
16mm: 71cm*31cm or 62cm*30cm
20mm: 78cm*32cm or 77cm*28cm
25mm: 80cm*32cm

Weight:
16mm*1.2mm*200m: 11.5 kg/roll
20mm*1.2mm*200m: 14 kg/roll
20mm*1.5mm*200m: 17 kg/roll
25mm*1.2mm*200m: 17 kg/roll
25mm*1.5mm*200m: 21 kg/roll

Load:
40 feet container: 80000m to 90000m LDPE pipe 16mm, 20mm, 25mm

(33) What's the pressure of LDPE pipe OD 16mm, thickness 1.2mm

A: 4BAR  ( PN4)

Other

(1) Can you provide C/O certificate of origin?

A: Yes. C/O, Invoice, Packing list, Original B/L

(2) Are you sprinkler factory or trading?

A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.

(3) Can you provide SONCAP, PVOC, COC, SASO?

A: Yes.

(4) My order quantity is not much, okay?

A: Small quantity is ok for first time

(5) What is the MOQ?

A: Usually one box per product. Small orders are also can be negotiated.

(6) Do you provide OEM & ODM Service?

A: Yes.

(7) How do you control your quality?

A: 100% test before delievery.

(8) What’s the packaging?

A: Usually carton. We can also change it according to your need.

(9) What’s the payment item do you support?

A: L/C, T/T. By Company account, Western Union or Personal account.



(10) What't the shipping port?

A: Tianjin, Yiwu, Guangzhou

(11) How can I buy the irrigation system products?

A: 2 problem need to be solved, shipping and payment.

1. Import and shipping problem. Best way, import by your company. Second way, find a

shipping agent in China, agent usually in Guangzhou or Yiwu. Some agent also have

office in many country.

2. Payment problem. Best way, pay by your company account. Second way, pay by

Western Union (www.westernunion.com), most bank can help to pay.  Third way, some

shipping agent do it for you.

3. By air or by sea? By air, fast but high shipping costs. By sea,  it's cheaper but

slower to ship goods by sea than air.

(12) How long the shipping is going to take to destination port?

A: According to different country (By sea).

Vietnam, Thailand, Cambodia, Southeast Asia - 14 days.

Kenya, Tanzania, East Africa - 37 days

Nigeria - 41 days

Morocco, Algeria, North Africa - 37 days

Pakistan, Bangladesh, Sri Lanka - 25 days

Mexico, Guatemala, Peru, Colombia, Ecuador - 41 days

Chile - 45 days

Panama - 33 days

Paraguay, Bolivia - 60 days

(13) Can you use pallets with the shipment?

A: Sure, can use pallents.

(14) What is the size of a pallet?

A: 100cm*100cm, 110cm*110cm, 100cm*120cm

(15) PDF catalog of irrigation products

Any other question about irrigation system?
