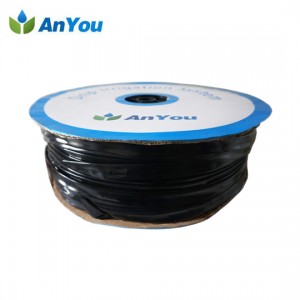

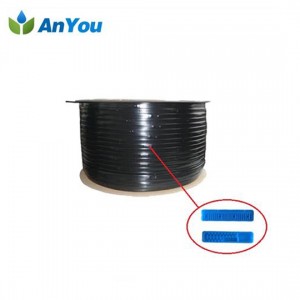

12mm Drip Tape with Flat Emitter

Short Description:

Drip tape with 12mm diameter, resists clogging, offering greater durability even in the most demanding settings. With a wide variety of available flow rates (Flow rate: 1.38 L/H, 1.6L/H, 2L/H, 3L/H, 4L/H), spacing ( 10cm-40cm) and wall thicknesses ( 0.15mm, 0.18mm, 0.2mm, 0.3mm, 0.4mm ). The exceptional durability of the tube materials makes installation and retrieval easier and extends the useful life of drip tape. For grape, strawberry, melon, corn, coffee, tea, tomato, cucumber, carrot, potato, onion, etc.


Product Detail

Application & Package

FAQ

Product Tags

1. Product Parameter(Specification)of the drip tape with flat emitter

  drip tape 1.38l

drip tape 2 LPH

drip tape 3 LPH

Thickness

Maximum pressure

0.18 mm

7 mil

1.0 bar

14.5 psi

0.2 mm

8 mil

1.4 bar

20 psi

0.3 mm

12 mil

1.6 bar

23 psi

0.4 mm

16 mil

1.6 bar

23 psi

drip-tape-irrigation

2. Product Feature of the drip tape with flat emitter

(1) For irrigation of crops, spacing from 10cm to 40cm.

(2) For surface and subsurface irrigation.

(3) High strength and durability.

(4) Highly resistance to clogging. Molded emitters stand up to challenging water and organic fertilizers.

(5) Maximum flexibility for storage, transport and handling.

(6) Blue ( white or yellow ) line on the surface is available, insures proper outlet placement.

(7) It helps to maintain the looseness of soil.

(8) Available ideal for distributing water on the soil not on leaves.

(9) Package is customizable, 1000m/roll, 1200m/roll, 1400m/roll, 2000m/roll, etc.

(10) Company name and manufacture time is available on drip tape, ensure traceability of drip tape quality problems.

(11) Drip tape test rate up to 50% at 2 bar, better quality assurance.

Note: 1. Have drip tape emitter facing up that make sure we don’t make any clogged emitters from any mud or soil; 2. Land is flat; 3. Filter 120 Mesh; 4. Prevent  insect/rodent damage; 5. If left above ground something called “magnifying glass” or “lens effect” damage can occur if plastic mulch is placed directly over drip tape; 6. Extra length should be left at both ends to allow for connection.

  • Previous:
  • Next:

  • 1. Application of the drip tape with flat emitter

    (1) Irrigation for orchards, vineyards, fruit, vegetables, field crops and green house.

    (2) For grape, strawberry, melon, corn, coffee, tea, tomato, cucumber, carrot, potato, onion, etc.

    2. Package

    Drip tape with flat emitter
    Diameter: 12mm
    Thickness: 0.2mm (8 mil)
    Flow rate: 1.38L/H, 1.6L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 15cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 20cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 25cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 30cm

    1000m/roll
    Package size: 50*50*16cm

    Drip tape with flat emitter
    Diameter: 12mm
    Thickness: 0.3mm (12 mil)
    Flow rate: 1.38L/H, 1.6L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1400m/roll
    Package size: 50*50*30cm

    Spacing: 15cm

    1400m/roll
    Package size: 50*50*30cm

    Spacing: 20cm

    1400m/roll
    Package size: 50*50*30cm

    Spacing: 25cm

    1400m/roll
    Package size: 50*50*30cm

    Spacing: 30cm

    1400m/roll
    Package size: 50*50*30cm

    Drip tape with flat emitter
    Diameter: 12mm
    Thickness: 0.4mm (16 mil)
    Flow rate: 1.38L/H, 1.6L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1200m/roll
    Package size: 50*50*30cm

    Spacing: 15cm

    1200m/roll
    Package size: 50*50*30cm

    Spacing: 20cm

    1200m/roll
    Package size: 50*50*30cm

    Spacing: 25cm

    1200m/roll
    Package size: 50*50*30cm

    Spacing: 30cm

    1200m/roll
    Package size: 50*50*30cm

    (1) What’s the main material of drip tape with flat emitter?

    A: PE

    (2) Is drip tape original ( new )material ?

    A: Original ( new) Material

    (3) Is the drip tape with flat emitter resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation

    (4) Is drip tape ok for subsurface irrigation?

    A: Ok, recommended no more than 5 cm underground

    (5) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L

    (6) Are you sprinkler factory or trading?

    A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
