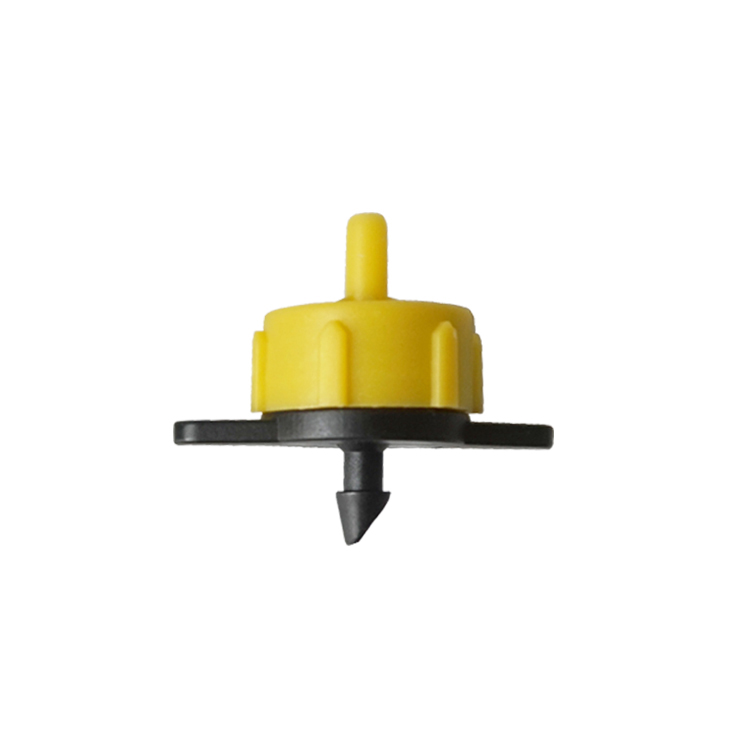

PC Dripper

Short Description:

PC pressure compensating dripper provides flow rate 2L/H, 4L/H and 8L/H, different color indicate different volume water. Obtaining high uniformity of water application and fertilizers on each plant and making each installation profitable. For installation use punch 3mm. Can be placed directly onto PE pipe (Polypipe) 16mm to 32mm or at the end of 4/7 PVC soft hose 6mm. The outlet of PC dripper can be connected with drip arrow by connector and 3/5 PVC soft hose, in order to guide the droplet to the required position. For vineyards, fruit tree, greenhouses and pot plants.


Product Detail

Application & Package

FAQ

Product Tags

PC Dripper

1. Product Parameter(Specification)of the PC dripper

Material PP
Pressure 1-3.5 bar
Flow rate Yellow 2L/H, Black 4L/H, Blue 8L/H
Pipe PE pipe 16-32mm or PVC soft hose



2. Product Feature of the PC dripper

(1) It is optimal for fields with sloped surfaces, for large run lengths or wherever it is necessary to have complete control over water consumption and uniformity of flow rate.

(2) The dripper incorporates a high quality replaceable silicone rubber diaphragm designed to ensure constant flow characteristics against pressure variation.

(3) Dismantable, removable cap for easy cleaning.

(4) Minimum filtration 120mesh.

(5) High quality plastic body withstands UV radiation, chemicals.

(6) Long-lasting performance and labor-saving maintenance.

(7) Flow rate: Yellow 2L/H, Black 4L/H, Blue 8L/H

Note: After the drip irrigation system is installed, before close off the end, necessary to flush system out to prevent any debris inside of the tube.

  • Previous:
  • Next:

  • PC Dripper

    1.Application of the PC dripper

    For vineyards, fruit tree, greenhouses and pot plants irrigation.

    2.Package

    Photo Description Size QTY/CTN Vol./CTN G.W/CTN
          PC KG
     AY-2003 a PC dripper
    AY-2003
    2L/H - yellow4L/H - black8L/H - blue 5000 0.063 20
     AY-2003 b Adjustable dripper
    AY-2001B
    0-100 L/H 5000 0.063 19

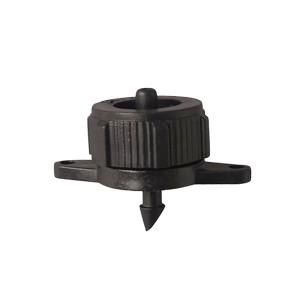

    pc dripper 2 PC dripper 2L/H, 4L/H, 8L/H 5000 0.063 21

    (1) What’s the main material of PC dripper?

    A: PP

    (2) Which pipe for the PC dripper?

    A: Can be placed directly onto PE pipe 16-32mm or at the end of 4/7 PVC soft hose 6mm. The outlet of PC dripper can be connected with drip arrow by connector and 3/5 PVC soft hose, in order to guide the droplet to the required position.

    (3) Which punch for the PC dripper?

    A: For installation use punch 3mm.

    (4) Is the PC dripper resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation and chemicals.

    (5) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L

    (6) Are you sprinkler factory or trading?

    A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
