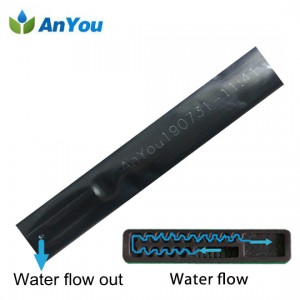

16mm Drip Tape with Flat Emitter

Short Description:

Drip tape with flat emitter inside, resists clogging. Made by 100% virgin PE raw material and advanced production technology, anti-UV, anti-corrosion, and durability.
• With a wide variety of available flow rates (Flow rate: 1.38 L/H, 2L/H, 3L/H, 4L/H), spacing ( 10cm-60cm) and wall thicknesses ( 0.13mm, 0.15mm, 0.16mm, 0.18mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm ). 500m/roll, 800m/roll, 1000m/roll, 1500m/roll, 2000m/roll, 2250m/roll,3050m/roll.
• Irrigation for grape, strawberry, watermelon, corn, sunflower, coffee, tea, tomato, cucumber, pepper, carrot, potato, carlic, chilli, onion, cabbage, etc.


Product Detail

Application & Package

FAQ

Product Tags

1. Product Parameter(Specification)of the drip tape with flat emitter

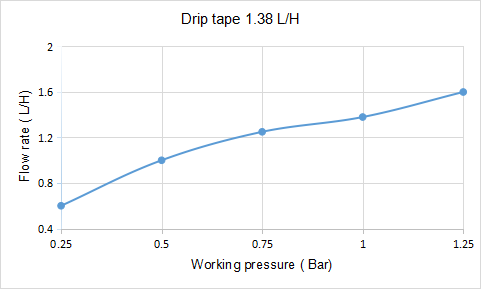

 drip tape 1.38l

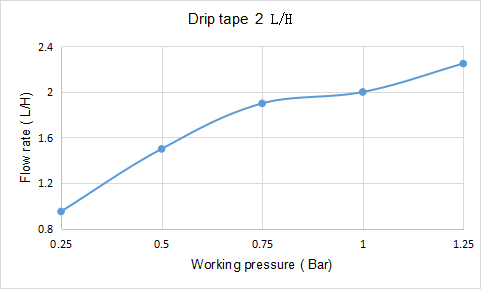

drip tape 2 LPH

drip tape 3 LPH

Thickness

Maximum pressure

0.15 mm

6 mil

1.0 bar

14.5 psi

0.18 mm

7 mil

1.0 bar

14.5 psi

0.2 mm

8 mil

1.4 bar

20 psi

0.3 mm

12 mil

1.6 bar

23 psi

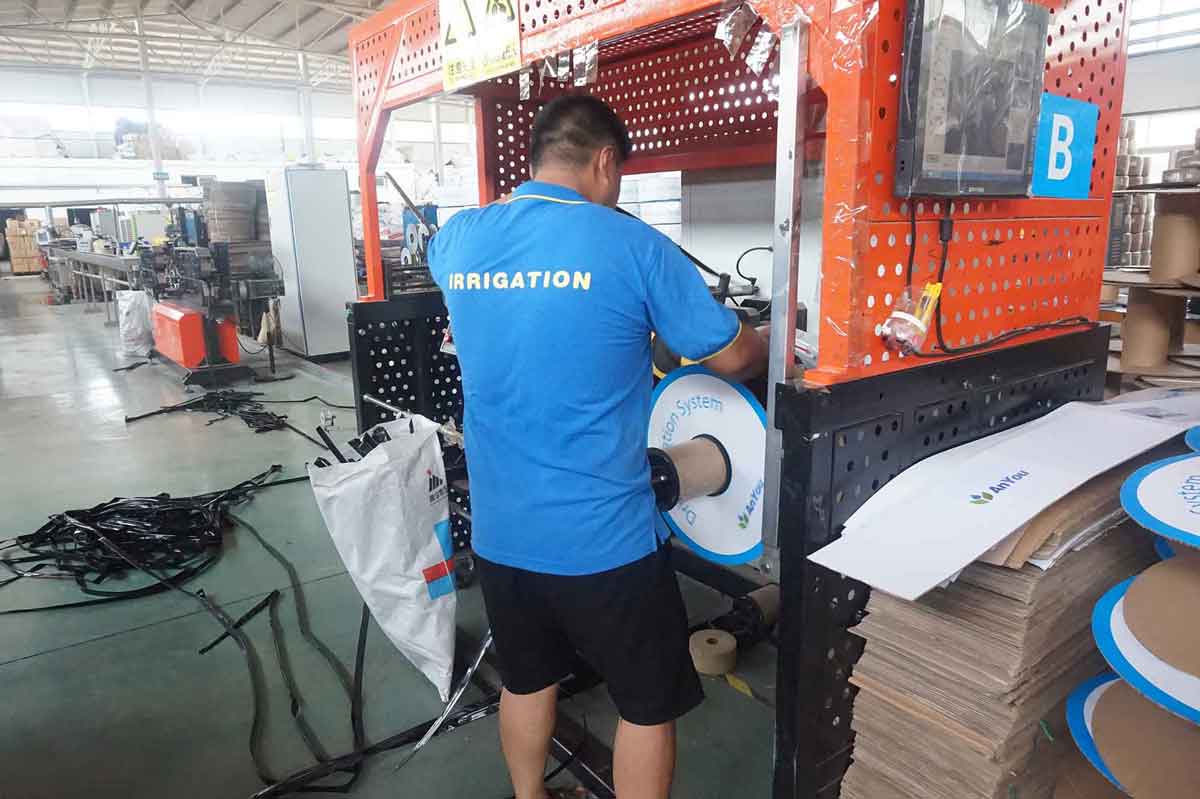

drip-tape-irrigation in China

2. Product Feature of the drip tape with flat emitter

(1) For irrigation of crops, spacing from 10cm to 60cm.
(2) For surface and subsurface irrigation.
(3) Made by 100% virgin PE raw material and advanced production technology, anti-UV, anti-corrosion, and durability.

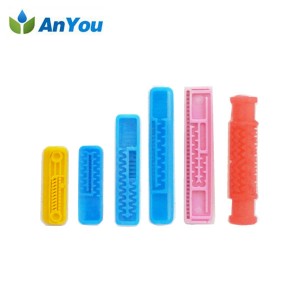

(4) Highly resistance to clogging. Molded emitters stand up to challenging water and organic fertilizers.
(5) Maximum flexibility for storage, transport and handling.
(6) Blue ( white or yellow ) line on the surface is available, insures proper outlet placement.
(7) It helps to maintain the looseness of soil.
(8) Available ideal for distributing water on the soil not on leaves.
(9)
Usually operated at a lower pressure than other types of pressurized irrigation, reducing energy costs.
(10) Package is customizable. 500m/roll, 800m/roll, 1000m/roll, 1500m/roll, 2000m/roll, 3000m/roll.
(11) Company name and manufacture time is available on drip tape, ensure traceability of drip tape quality problems.
(12) Drip tape test rate up to 50% at 2 bar, better quality assurance.

Note: 1. Have drip tape emitter facing up that make sure we don’t make any clogged emitters from any mud or soil; 2. Land is flat; 3. Filter 120 Mesh; 4. Prevent  insect/rodent damage; 5. If left above ground something called “magnifying glass” or “lens effect” damage can occur if plastic mulch is placed directly over drip tape; 6. Extra length should be left at both ends to allow for connection.


  • Previous:
  • Next:

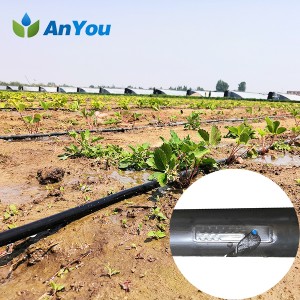

  • 1. Application of the drip tape with flat emitter

    (1) Irrigation for orchards, vineyards, fruit, vegetables, field crops and green house.

    (2) For grape, strawberry, watermelon, corn, sunflower, coffee, tea, tomato, cucumber, pepper, carrot, potato, carlic, chilli, onion, cabbage, etc.

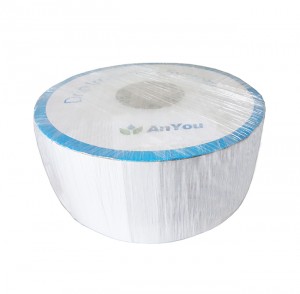

    2. Package

    Drip tape with flat emitter
    Diameter: 16mm
    Thickness: 0.18mm (7 mil)
    Flow rate: 1.38L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 15cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 20cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 25cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 30cm

    1000m/roll
    Package size: 50*50*16cm

    Drip tape with flat emitter
    Diameter: 16mm
    Thickness: 0.2mm (8 mil)
    Flow rate: 1.38L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 15cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 20cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 25cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 30cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 40cm

    1000m/roll
    Package size: 50*50*16cm

    Spacing: 50cm

    1000m/roll
    Package size: 50*50*16cm

    Drip tape with flat emitter
    Diameter: 16mm
    Thickness: 0.3mm (12 mil)
    Flow rate: 1.38L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1500m/roll
    Package size: 50*50*30cm

    Spacing: 15cm

    1500m/roll
    Package size: 50*50*30cm

    Spacing: 20cm

    1500m/roll
    Package size: 50*50*30cm

    Spacing: 25cm

    1500m/roll
    Package size: 50*50*30cm

    Spacing: 30cm

    1500m/roll
    Package size: 50*50*30cm

    Spacing: 40cm

    750m/roll; 1500m/roll
    Package size: 50*50*30cm

    Spacing: 50cm

    750m/roll; 1500m/roll
    Package size: 50*50*30cm

    Drip tape with flat emitter
    Diameter: 16mm
    Thickness: 0.4mm (16 mil)
    Flow rate: 1.38L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 10cm

    1000m/roll
    Package size: 50*50*30cm

    Spacing: 15cm

    1000m/roll
    Package size: 50*50*30cm

    Spacing: 20cm

    1000m/roll
    Package size: 50*50*30cm

    Spacing: 25cm

    1000m/roll
    Package size: 50*50*30cm

    Spacing: 30cm

    1000m/roll
    Package size: 50*50*30cm

    Drip tape with flat emitter
    Diameter: 16mm
    Thickness: 0.5mm (20 mil)
    Flow rate: 1.38L/H, 2L/H, 2.5L/H, 2.7L/H, 3L/H, 4L/H

    Spacing: 15cm

    500m/roll
    Package size: 50*50*30cm

    Spacing: 20cm

    1000m/roll
    Package size: 50*50*30cm

    Spacing: 25cm

    1000m/roll
    Package size: 50*50*30cm

    Spacing: 30cm

    1000m/roll
    Package size: 50*50*30cm

    Note: 0.2mm: 650.000m for 20GP, 1650,000m for 40HQ
    20 GP container: 33.2 m³,30.48 t;  40 HQ container: 76.3 m³,32.5 t;

    (1) What’s the main material of drip tape with flat emitter?

    A: PE

    (2) Is drip tape original ( new )material ?

    A: Original ( new) Material

    (3) Is the drip tape with flat emitter resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation

    (4) Is drip tape ok for subsurface irrigation?

    A: Ok, ≤ 5 cm underground

    (5) What is the length of Drip Tape required for one acre?

    A: 4000 meters/acre. More fittings, quantity and details, please check《What drip irrigation kit do you need for 1 acre farm

    (6) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L
