Rain Gun 1.5 Inch

Short Description:

Due to the brass core and whole body painting, Rain gun sprinkler 1.5 inch is durable. Spray radius is long, radius 16-29m. This rain gun represent our capacity to integrate innovative technology, performance and reliability. Especially designed for pivot end gun irrigation, environmental applications, sports field applications.


Product Detail

Application & Package

FAQ

Product Tags

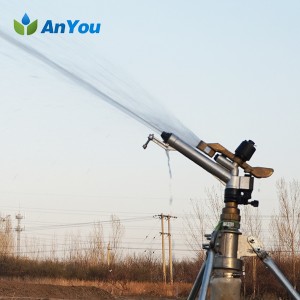

Rain Gun 1.5 inch

1. Product Parameter(Specification)of the Rain Gun 1.5 inch

Rain Gun Size 1.5″
Material Aluminum + brass core
Pressure 1.5-5 bar
Radius 16-29 m
Flow rate 5.1-24.8 m³/h



Performance Data
Nozzle Pressure Radius Discharge Irrigated Area Precipitation Rate
mm bar m l/min m³/h mm/h
8 1.5 16 86 5.1 804 6,3
2 17.5 99 5.9 962 6,1
3 19.5 121 7.2 1194 6,0
4 21 140 8.4 1384 6,0
10 2 18 130 7.8 1017 7,6
3 21 159 9.5 1384 6,9
4 23 184 11 1662 6,6
5 24.5 207 12.4 1884 6,5
12 2 19.5 169 10.1 1194 8,5
3 22 207 12.4 1520 8,1
4 25 239 14.3 1962 7,3
5 27.5 269 16.1 2374 6,8
14 2 20.5 215 12.9 1319 9,8
3 23.5 264 15.8 1734 9,1
4 26 305 18.3 2123 8,6
5 28.5 342 20.5 2550 8,0
16 2 21 267 16 1384 11,5
3 24 328 19.6 1809 10,8
4 26.5 379 22.7 2205 10,3
5 29 414 24.8 2640 9,4

2. Product Feature of the Rain Gun

(1) Key parts: brass core

(2) Whole body painting, more durable and beautiful

(3) Spray better with special part

(4) Long distance spray radius

(5) Good welding

(6) It is the circle operation, the angle is adjustable from 0 degree to 360 degree

(7) No need of land leveling

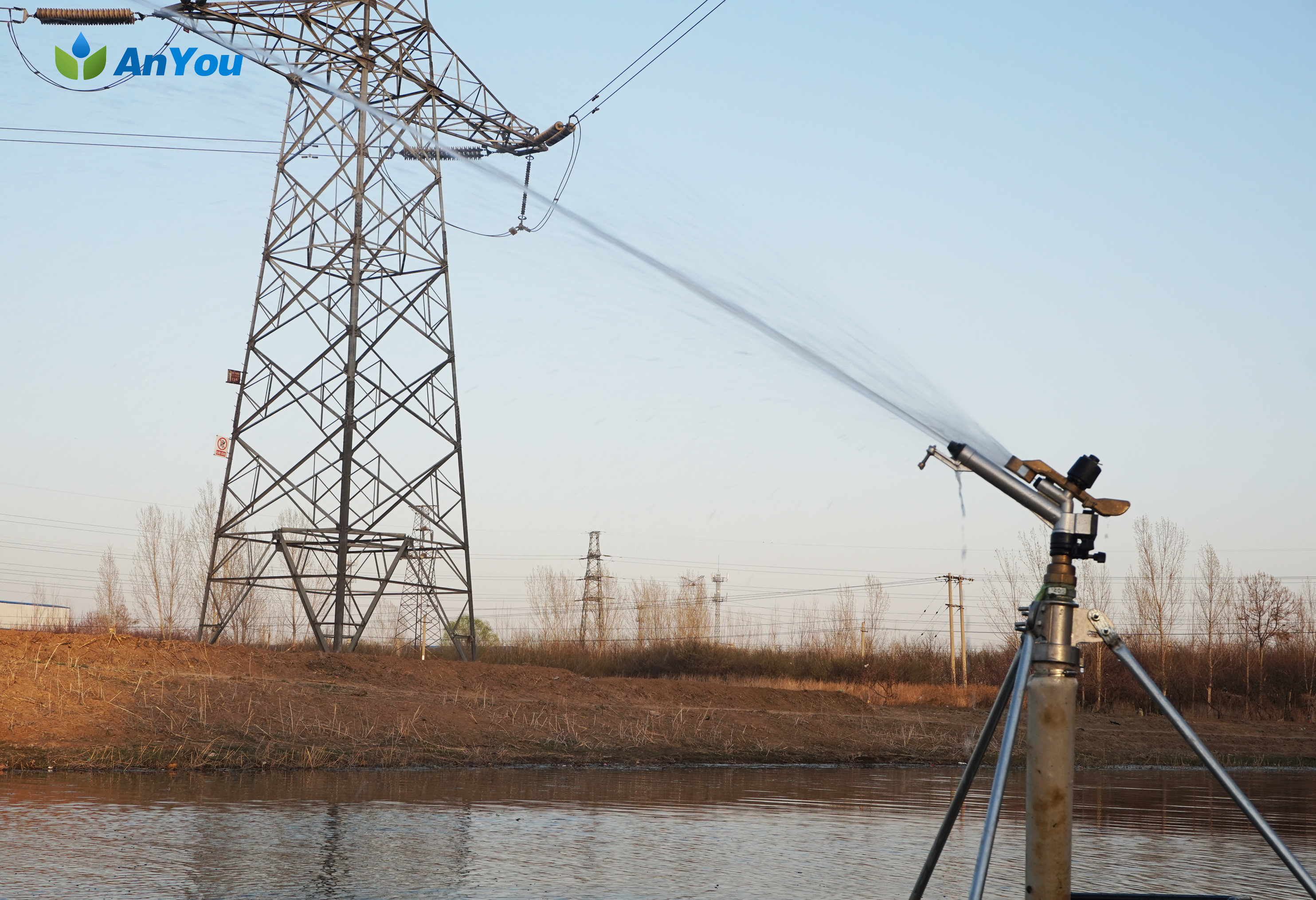

Rain gun AY-1030C Anyou Industry


  • Previous:
  • Next:

  • Rain Gun 1.5 inch

    1. Application of the Rain Gun

    (1) Pivot End Gun Irrigation

    - Traveler Irrigation

    - Solid Set Irrigation

    - Corn, Sugar Cane, Pineapple, Pastures, etc.

    (2) Environmental Applications

    - Feedlot Dust Suppression & Cooling

    - Waste water Applications

    - Mining Dust Suppression

    (3) Sports Field Applications

    - Turf Irrigation

    - Synthetic Turf Cooling & Conditioning



    2. Package


    Description

    Size

    QTY/CTN

    Vol./CTN

    G.W/CTN

    PC

    KG

    rain gun

    Rain gun

    AY-1030B

    1-1/4″

    10

    0.037

    13.5

    rain gun

    Rain gun

    AY-1030C

    1.5″

    10

    0.048

    18

    rain gun

    Rain gun

    AY-1040B

    2″

    5

    0.099

    19

    big gun

    Rain gun

    AY-1050A

    2”

    1

    0.062

    9.5

    Rain gun

    Rain gun

    AY-1050D



    2”

    1

    0.062

    10.5

    pvc layflat hose

    pvc layflat hose

    connector

    hose clamp





     FAQ

    (1) Which type of hose for the Rain Gun?

    A: PVC lay flat hose or PVC Fire hose

    (2) Which size of hose for the Rain Gun?

    A: 2 inch or 2.5 inch PVC lay flat hose or PVC Fire hose

    Note:

    2 inch PVC hose for 1.5 inch PY30 rain gun

    2.5 inch PVC hose for 2.5 inch PY50 rain gun

    (3) Rain gun do not rotate, how to adjust the Rain Gun?

    A: Mainly four reasons below

    Pressure is low: change pump (lift 40m, flow rate 20m³/h, power 4kw).

    Spring is tight:

    Angle is small:

    Water is dirty: choose another water source and use disc filter.

    (4) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L

    (5) Are you sprinkler factory or trading?

    A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
