Micro Sprinkler AY-1108

Short Description:

Micro Sprinkler AY-1108 is a full circle dynamic sprinkler, vibrates when in operation and distributes evenly fine droplets on a medium area. Used for irrigation of nurseries, green houses and trees with medium/small root zone. Such as dragon fruit, pepper, grapefruit, butter, citrus, durian, etc.




Product Detail

Application & Package

FAQ

Product Tags

Micro Sprinkler

1. Product Parameter(Specification)of the micro sprinkler AY-1108

Connection size 6.0 male
Material POM
Pressure 1.5-3.0 bar
Radius 1.4-2 m
Flow rate 40 L/H at 3 bar

 Note: Before attach the sprinkler head, flush the line first, keep any little tiny debris or sand from going throuth those nozzles and clogging them.

2. Product Feature of the micro sprinkler AY-1108

(1) Avoid plant damage: Bridge-less design ensures drip-less operation so that any plants located below are protected from water drip-off.

(2) Vibrating needle constantly cleaning the orifice and prevents accumulation of debris inside the nozzle, reducing need for maintenance and repairs.

(3) Well balanced for water distribution with maximum water-use efficiency

(4) High quality plastic body withstands UV radiation, chemicals, and accidental impact


  • Previous:
  • Next:

  • 1.Application of the micro sprinkler AY-1108

    (1) Used for irrigation of trees with medium/small root zone. Such as dragon fruit, pepper, grapefruit, butter, citrus, durian, etc.

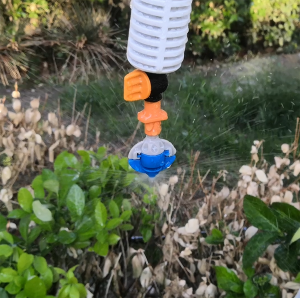

    (2) Can be installed in upside down position for reduced wetting diameter.
    This is applicable for young plantation, enabling the grower to irrigate only the root zone and thus save water. After the tree grows the emitter can be set upright to irrigate the larger root zone.


    (3) For green house irrigation.

    (4) For landscape and gardening.

    2.Package and Shipping

    Photo Description Size QTY/CTN Vol./CTN G.W/CTN
    PC KG
     AY-1108 Micro sprinkler
    AY-1108
    6.0 male 5000 0.044 20.5
     micro sprinkler AY-1008C Micro sprinkler AY-1008C 6.0 male 40000 0.062 23
     1008 2 Micro sprinkler AY-1008 barb 10000 0.062 20
     1008a Micro sprinkler AY-1008A 6.0 female 10000 0.062 20
     AY-1119 Micro sprinkler
    AY-1119
    6mm, 7.5mmfemale 5000 0.062 22.5
     AY-1116 Micro sprinkler
    AY-1116
    6.0 female 1000 0.074 20.5
     AY-1260 Micro sprinkler
    AY-1260
    6.0 female 5000 0.066 21
     AY-1005 Five head fogger
    AY-1005
    6.0 female 1000 0.062 30
     AY-1005B Five head fogger
    AY-1005B
    6.0 female 1000 0.062 37
     AY-9113 Reducing connector for micro sprinkler
    AY-9113
    1/2″ * 6.0mm male 5000 0.076 22
     AY-9160 Valve for micro sprinkler
    AY-9160
    6.0mm * barb 5000 0.046 20
     AY-9160C Valve for micro sprinkler
    AY-9160C
    double barb 5000 0.046 20

    (1) What’s the main material of micro sprinkler AY-1108?

    A: POM

    (2) Micro sprinkler AY-1108, full circle?

    A: Yes, 360 degree full circle

    (3) Is the micro sprinkler AY-1108 resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation, chemicals, and accidental impact

    (4) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L
