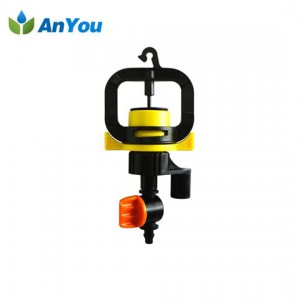

Micro Sprinkler AY-1116

Short Description:

Micro Sprinkler AY-1116 with insect resistant nozzle and easy take-apart body, does the job well with perfect water droplets, angle and spread. For fruit tree, vegetables and nurseries irrigation.


Product Detail

Application & Package


Product Tags

Micro Sprinkler

1. Product Parameter(Specification)of the micro sprinkler AY-1116

Connection size 6.0*8.0 female
Material POM
Pressure 1.5-3 bar
Radius 3-6 m
Flow rate 50-300 L/H

 Note: Before attach the sprinkler head, flush the line first, keep any little tiny debris or sand from going throuth those nozzles and clogging them.

2. Product Feature of the micro sprinkler AY-1116

(1) Uniform coverage over a wide range of spacings, flow rates and pressures

(2) Provides total surface irrigation with two dispersion outlets.

(3) High quality plastic body withstands UV radiation, chemicals, and accidental impact

(4) Insect resistant nozzle. Shuts off after operation preventing clogging by dirt or insects.

(5) Easy take-apart body

  • Previous:
  • Next:

  • 1.Application of the micro sprinkler AY-1116

    (1) Irrigation for widely-spaced plantations such as walnut, almond, avocado, banana, durian, butter and mango.

    (2) Irrigation for fruit tree, vegetables and nurseries.


    Photo Description Size QTY/CTN Vol./CTN G.W/CTN
    PC KG
     AY-1116 Micro sprinkler
    6.0 female 1000 0.074 20.5
     AY-1117 Micro sprinkler
    1/2” male thread 1000 0.074 20.5
     AY-1119 Micro sprinkler
    6mm, 7.5mmfemale 5000 0.062 22.5
     1008 2 Micro sprinkler
    barb 10000 0.062 20
     AY-1108 Micro sprinkler
    6.0 male 5000 0.044 20.5
     AY-1260 Micro sprinkler
    6.0 female 5000 0.066 21
     AY-9160 Valve for micro sprinkler
    6.0mm * barb 5000 0.046 20
     AY-9160C Valve for micro sprinkler
    double barb 5000 0.046 20
     AY-9101 4/7 single barb for micro sprinkler
    4/7*6.0 male 50000 0.092 36
     AY-9103 4/7 double barb for micro sprinkler
    4/7 50000 0.092 36

    (1) What’s the main material of micro sprinkler AY-1116?

    A: POM

    (2) Micro sprinkler AY-1116, full circle?

    A: Yes, 360 degree full circle

    (3) Is the micro sprinkler AY-1116 resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation, chemicals, and accidental impact

    (4) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L

    (5) Are you sprinkler factory or trading?

    A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
