Plastic Impact Sprinkler AY-5010

Short Description:

Part circle plastic impact sprinkler with 3/4″ male thread connection. High quality plastic body and stainless steel spring withstands chemicals, UV radiation, and accidental impact. Over head sprinkler for crop and vegetable irrigation on solid set as well as portable systems.


Product Detail

Application & Package

FAQ

Product Tags

Plastic Impact Sprinkler

1. Product Parameter(Specification)of the plastic impact sprinkler AY-5010

Size 3/4” male thread
Material POM + stainless steel
Nozzle size 5.0*2.5 mm
Pressure 3-5 bar
Radius 13-18 m
Flow rate 0.7-2.45 m³/h



2. Product Feature of the plastic impact sprinkler AY-5010

(1) Part circle or 360 degree full circle adjustable

(2) Well balanced for water distribution with maximum water-use efficiency

(3) Diffuser arm and pin improves water distribution pattern and uniformity

(4) Nozzles with integrated stream straightening vane for long distance

(5) High quality plastic body withstands UV radiation, chemicals, and accidental impact

(6) Spring and pivot pin are made of stainless steel

(7) Part circle assembly made by special grade plastic material for longevity

(8) Nozzle Bayonet connection for easy service in field conditions

(9) More stable movement with metal weight hammer on the arm

(10) Long-lasting performance and labor-saving maintenance

(11) Reduced sensitivity to clogging and higher resistance to wind


  • Previous:
  • Next:

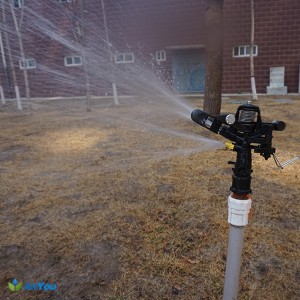

  • 1.Application of the plastic impact sprinkler AY-5010

    Over head sprinkler for crop and vegetable irrigation on solid set and portable systems.


    2.Package

    Photo Description Size QTY/CTN Vol./CTN G.W/CTN
    PC KG
     AY-5010 Plastic impact sprinkler AY-5010 3/4” male thread 100 0.045 13.5
     plastic impact sprinkler AY-5003 Plastic impact sprinkler AY-5003 1/2” male thread 300 0.12 21.5
     plastic impact sprinkler AY-5005 Plastic impact sprinkler AY-5005 1/2” male thread 300 0.12 21.5
     plastic impact sprinkler AY-5008 Plastic impact sprinkler AY-5008 1/2” male thread 300 0.12 21.5

    (1) What’s the main material of plastic impact sprinkler AY-5010? A: POM (2) What’s the spring material of plastic impact sprinkler AY-5010? A: Stainless steel ( SS ) (3) Plastic impact sprinkler AY-5010, part circle ( angle adjustable)? A: Part circle or 360 degree full circle adjustable (4) Is the plastic impact sprinkler AY-5010 resistant to UV radiation? A: Yes. High quality plastic body withstands UV radiation, chemicals, and accidental impact. (5) Can you provide C/O certificate of origin? A: Yes. C/O, Invoice, Packing list, Original B/L
