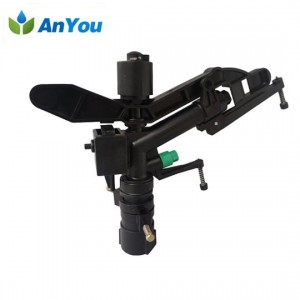

Plastic Impact Sprinkler AY-5101

Short Description:

Part circle plastic impact sprinkler with 1″ female thread connection and diffuser pin. POM plastic and stainless steel spring withstands chemicals, UV radiation, and accidental impact. For field crops, vegetable and lawn by over head irrigation.

Product Detail

Application & Package


Product Tags

1. Product Parameter(Specification)of the plastic impact sprinkler AY-5101

Size 1″ female thread
Material POM+stainless steel
Nozzle quantity 2 nozzles
Pressure 2-5 bar
Radius 18-26 m
Flow rate 4-6 m³/h

2. Product Feature of the plastic impact sprinkler AY-5101

(1) Well balanced for water distribution with maximum water-use efficiency

(2) Diffuser pin and diffuser arm improves water distribution pattern and uniformity

(3) Nozzles with integrated stream straightening vane for long distance

(4) POM plastic body withstands UV radiation, chemicals and accidental impact

(5) Spring is made of stainless steel

(6) Rotation speed adjustable with the spring part on the top

(7) More stable movement with metal weight hammer on the arm

(8) Long-lasting performance and labor-saving maintenance

(9) Reduced sensitivity to clogging and higher resistance to wind


  • Previous:
  • Next:

  • 1.Application of the plastic impact sprinkler AY-5101

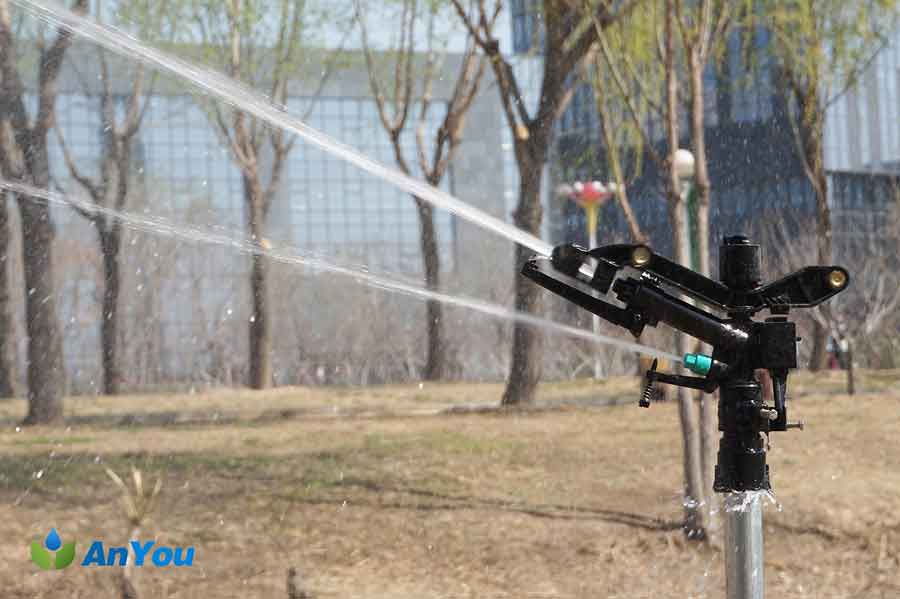

    Over head sprinkler irrigation for field crops, vegetable and lawn.


    Photo Description Size QTY/CTN Vol./CTN G.W/CTN
    PC KG
     5105 Plastic impact sprinkler
    1” female thread 50 0.08 16
     5104 Plastic impact sprinkler
    1” female thread 50 0.08 15
     5104 2 Plastic impact sprinkler
    1” female thread 50 0.08 15.5
     AY-5103 Plastic impact sprinkler
    1” female thread 50 0.08 14.5
     5101 Plastic impact sprinkler
    1” female thread 50 0.08 18.5
     AY-5300 Metal impact sprinkler
    1” female thread 35  0.037 17
     AY-9590 Rapid water valve
    1” male thread 34 0.053 7.5
     RAIN GUN Rain gun PY40
    2″ 10 0.076 21

    (1) What’s the main material of plastic impact sprinkler AY-5101?

    A: POM

    (2) What’s the spring material of plastic impact sprinkler AY-5101?

    A: Stainless steel ( SS )

    (3) Plastic impact sprinkler AY-5101, part circle ( angle adjustable) or full circle?

    A: Part circle

    (4) Is the plastic impact sprinkler AY-5101 resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation, chemicals and accidental impact

    (5) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L

    (6) Are you sprinkler factory or trading?

    A: We are factory. Welcome to our company Baoding Anyou Industry Co.,Ltd in Baoding China.
