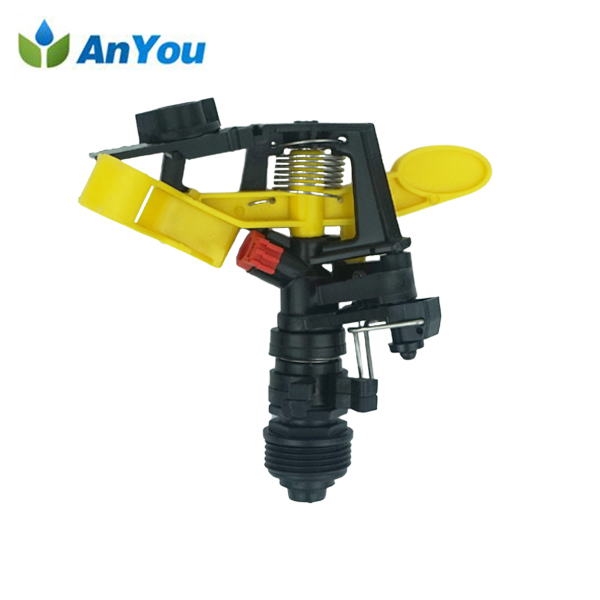

Plastic Impact Sprinkler AY-5003

Short Description:

Part circle plastic impact sprinkler with 1/2″ male thread connection. High quality POM plastic body and stainless steel spring withstands chemicals, UV radiation, and accidental impact. Over head sprinkler for lawn, garden, crop and vegetable irrigation.




Product Detail

Application & Package

FAQ

Product Tags

1. Product Parameter(Specification)of the plastic impact sprinkler AY-5003

Size 1/2” male thread
Material POM + stainless steel
Nozzle size 4.0 mm
Pressure 1.5-4 bar
Radius 5-12 m
Flow rate 1.5-4 m³/h



2. Product Feature of the plastic impact sprinkler AY-5003

(1) Part circle or 360 degree full circle adjustable

(2) Well balanced for water distribution with maximum water-use efficiency

(3) Diffuser improves water distribution pattern and uniformity

(4) Nozzles with integrated stream straightening vane for long distance

(5) High quality POM plastic body withstands UV radiation, chemicals and accidental impact

(6) Spring and pivot pin are made of stainless steel

(7) Part circle assembly made by special grade plastic material for longevity

(8) Nozzle Bayonet connection for easy service in field conditions

(9) Long-lasting performance and labor-saving maintenance

(10) Reduced sensitivity to clogging and higher resistance to wind

(11) Yellow, gray or black, more color for clients to choose


  • Previous:
  • Next:

  • 1.Application of the plastic impact sprinkler AY-5003

    (1) For lawn, garden and crop by overhead sprinkler irrigation.

    (2) For irrigation and germination of vegetable, flower, potato.

    (3) For efficient irrigation of field edge.

     2.Package

    Photo Description Size QTY/CTN Vol./CTN G.W/CTN
    PC KG
    plastic impact sprinkler AY-5003 Plastic impact sprinkler AY-5003 1/2” male thread 300 0.12 21.5
    Plastic impact sprinkler AY-5003A Plastic impact sprinkler AY-5003A 1/2” male thread 300 0.12 21.5
    Plastic impact sprinkler AY-5003B Plastic impact sprinkler AY-5003B 1/2” male thread 300 0.12 21.5
    plastic impact sprinkler AY-5005 Plastic impact sprinkler AY-5005 1/2” male thread 300 0.12 21.5
    plastic impact sprinkler AY-5008 Plastic impact sprinkler AY-5008 1/2” male thread 300 0.12 21.5
    metal impact sprinkler AY-5302 Metalimpact sprinkler AY-5302 1/2” male thread 100  0.067 21.5
    stand for sprinkler AY-9503 Stand for sprinkler 1/2″ AY-9503  1/2” female thread 50 0.15 21.5

    (1) What’s the main material of plastic impact sprinkler AY-5003?

    A: POM

    (2) What’s the spring material of plastic impact sprinkler AY-5003?

    A: Stainless steel ( SS )

    (3) Plastic impact sprinkler AY-5003A, part circle ( angle adjustable)?

    A: Part circle or 360 degree full circle adjustable

    (4) Is the plastic impact sprinkler AY-5003A resistant to UV radiation?

    A: Yes. High quality plastic body withstands UV radiation, chemicals, and accidental impact.

    (5) How to adjust the plastic impact sprinkler AY-5003?

    A: The simplest solution is to control the flow of water at its source. You can also adjust the different parts of the head, like the diffuser pin, movement collars, and deflector shield, to get the right strength and trajectory.

    Note: Details information, please refer to the article <How to Adjust an Impact Sprinkler>

    (6) Can you provide C/O certificate of origin?

    A: Yes. C/O, Invoice, Packing list, Original B/L
