Plastic Impact Sprinkler AY-5003A
Application & Package
1. Product Parameter（Specification）of the plastic impact sprinkler AY-5003A
|Size||1/2” male thread|
|Material||POM + stainless steel|
|Nozzle size||4.0 mm|
|Flow rate||1.5-4 m³/h|
2. Product Feature of the plastic impact sprinkler AY-5003A
(1) Part circle or 360 degree full circle adjustable
(2) Well balanced for water distribution with maximum water-use efficiency
(3) Diffuser improves water distribution pattern and uniformity
(4) Nozzles with integrated stream straightening vane for long distance
(5) High quality POM plastic body withstands UV radiation, chemicals, and accidental impact
(6) Spring and pivot pin are made of stainless steel
(7) Part circle assembly made by special grade plastic material for longevity
(8) Nozzle Bayonet connection for easy service in field conditions
(9) Long-lasting performance and labor-saving maintenance
(10) Reduced sensitivity to clogging and higher resistance to wind
(11) Yellow, gray or black, more color for clients to choose
1.Application of the plastic impact sprinkler AY-5003A

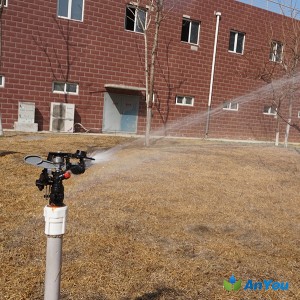

(1) For lawn, garden and crop by overhead sprinkler irrigation.
(2) For irrigation and germination of vegetable, flower, potato.
(3) For efficient irrigation of field edge.
|Plastic impact sprinkler AY-5003||1/2” male thread||300||0.12||21.5|
|Plastic impact sprinkler AY-5003A||1/2” male thread||300||0.12||21.5|
|Plastic impact sprinkler AY-5003B||1/2” male thread||300||0.12||21.5|
|Plastic impact sprinkler AY-5005||1/2” male thread||300||0.12||21.5|
|Plastic impact sprinkler AY-5008||1/2” male thread||300||0.12||21.5|
|Metalimpact sprinkler AY-5302||1/2” male thread||100||0.067||21.5|
|Stand for sprinkler 1/2″ AY-9503||1/2” female thread||50||0.15||21.5|
(1) What’s the main material of plastic impact sprinkler AY-5003A?
(2) What’s the spring material of plastic impact sprinkler AY-5003A?
A: Stainless steel ( SS )
(3) Plastic impact sprinkler AY-5003A, part circle ( angle adjustable)?
A: Part circle or 360 degree full circle adjustable
(4) Is the plastic impact sprinkler AY-5003A resistant to UV radiation?
A: Yes. High quality plastic body withstands UV radiation, chemicals, and accidental impact.
(5) How to adjust the plastic impact sprinkler AY-5003A?
A: The simplest solution is to control the flow of water at its source. You can also adjust the different parts of the head, like the diffuser pin, movement collars, and deflector shield, to get the right strength and trajectory.
Note: Details information, please refer to the article <How to Adjust an Impact Sprinkler>
(6) Can you provide C/O certificate of origin?
A: Yes. C/O, Invoice, Packing list, Original B/L
